UP & DOWN Outdoor Divider with Planter

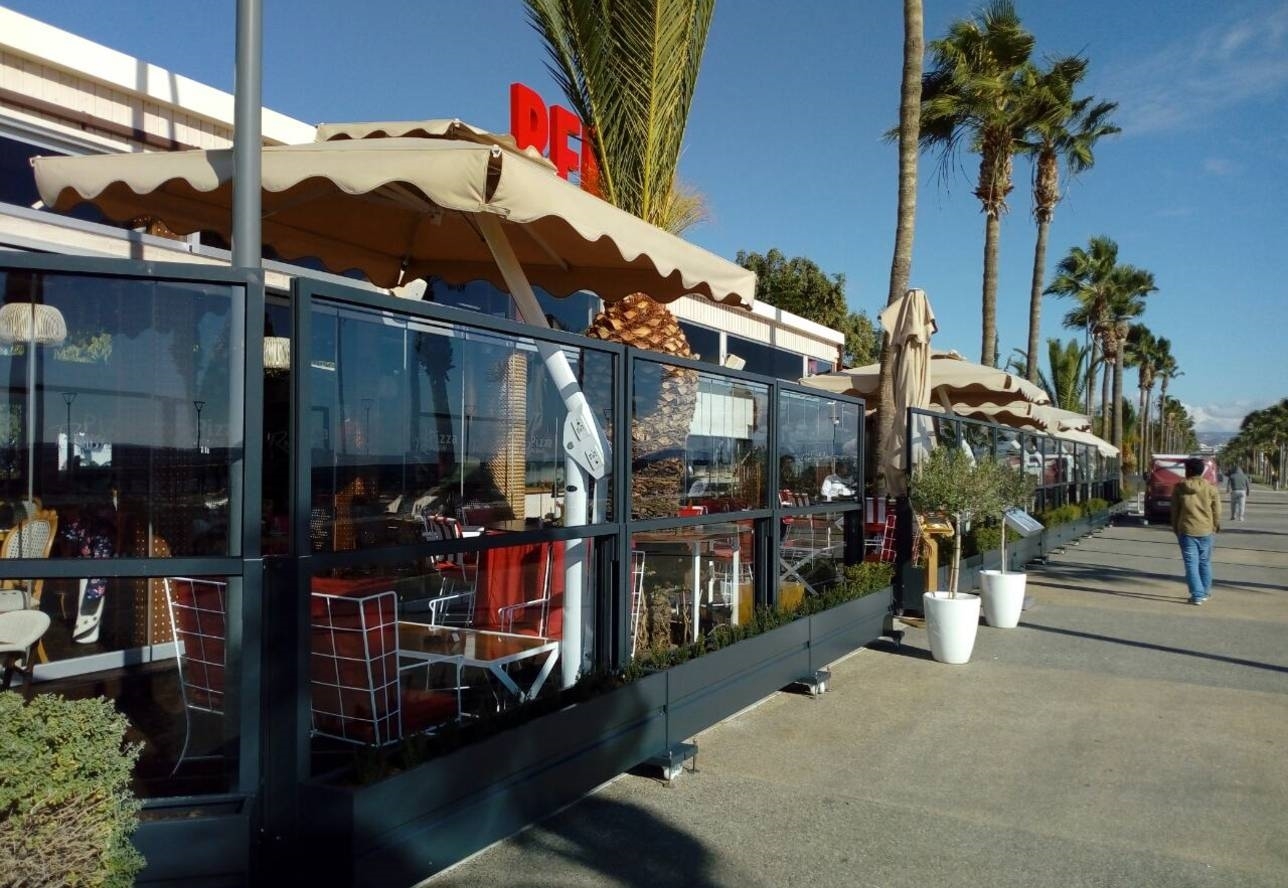

Combination of UP & DOWN manually operated side coverage system and planter. Ideal for dining areas. Protects the premises and combines the flexibility of the UP & DOWN system with the use of a planter or seat. A series of windbreaks can be installed in a row, depending on the area of your premises to be covered.

Hand driven entirely from powder coated aluminum. Available in any RAL color of your choice.

For further enhanced flexibility in terms of layout, the UP & DOWN system planters are available with industrial type castors. Non-permanent installation is also possible.

GLASS PANEL	3mm + 3mm ΤRIPLEX
HEIGHT WHEN OPEN	180 cm	200 cm	220 cm
HEIGHT WHEN CLOSED	100 cm	110 cm	120 cm
PLANTER DIMENSIONS	WIDTH: 25cm	HEIGHT: 35 cm

Available in lengths up to 3.50 m and heights up to 2.20 m. Can be made in any size required. Can be installed on sloping ground.

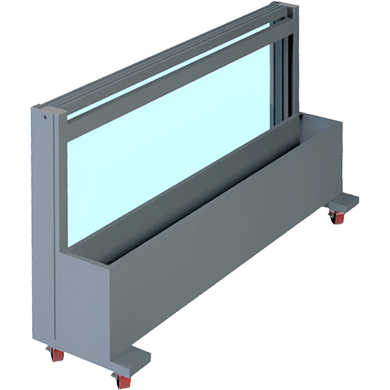

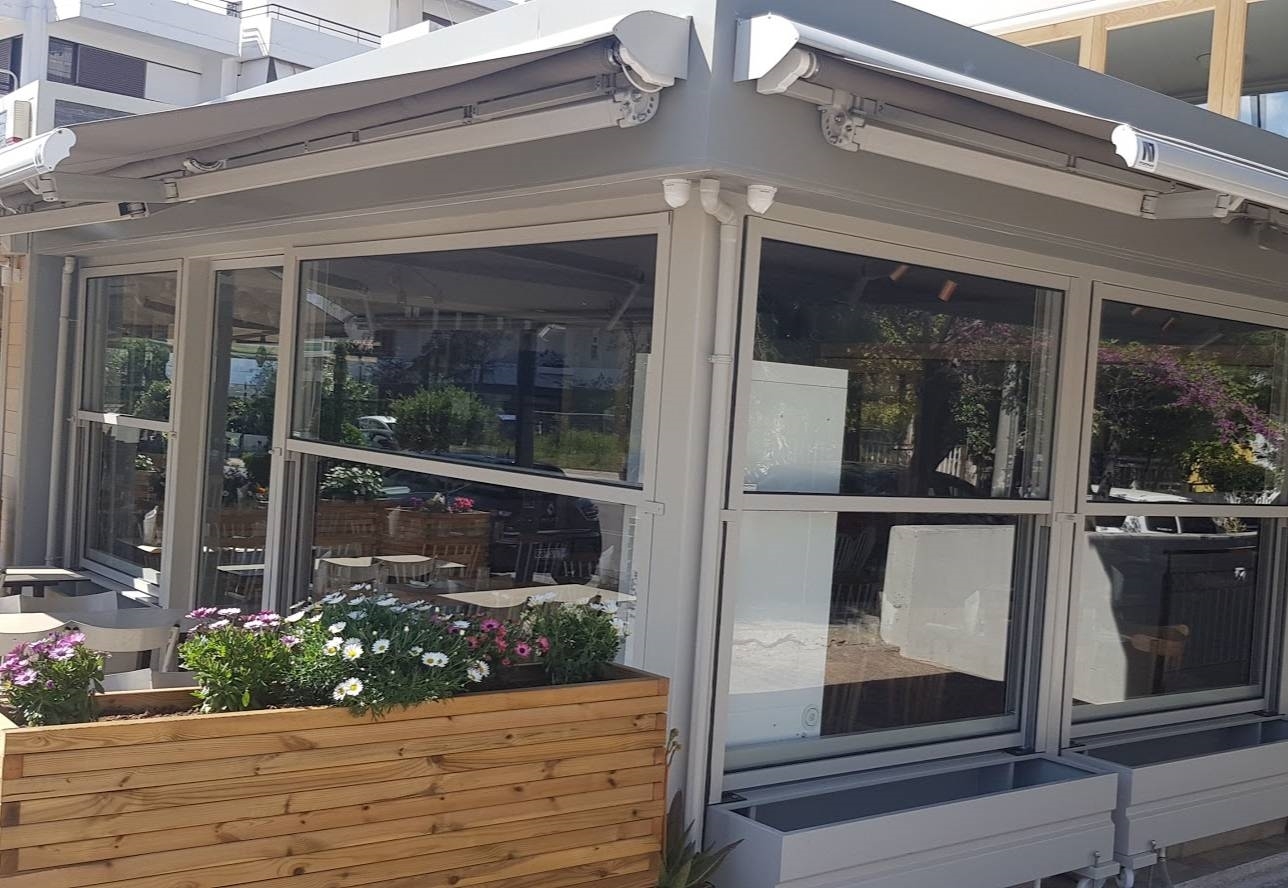

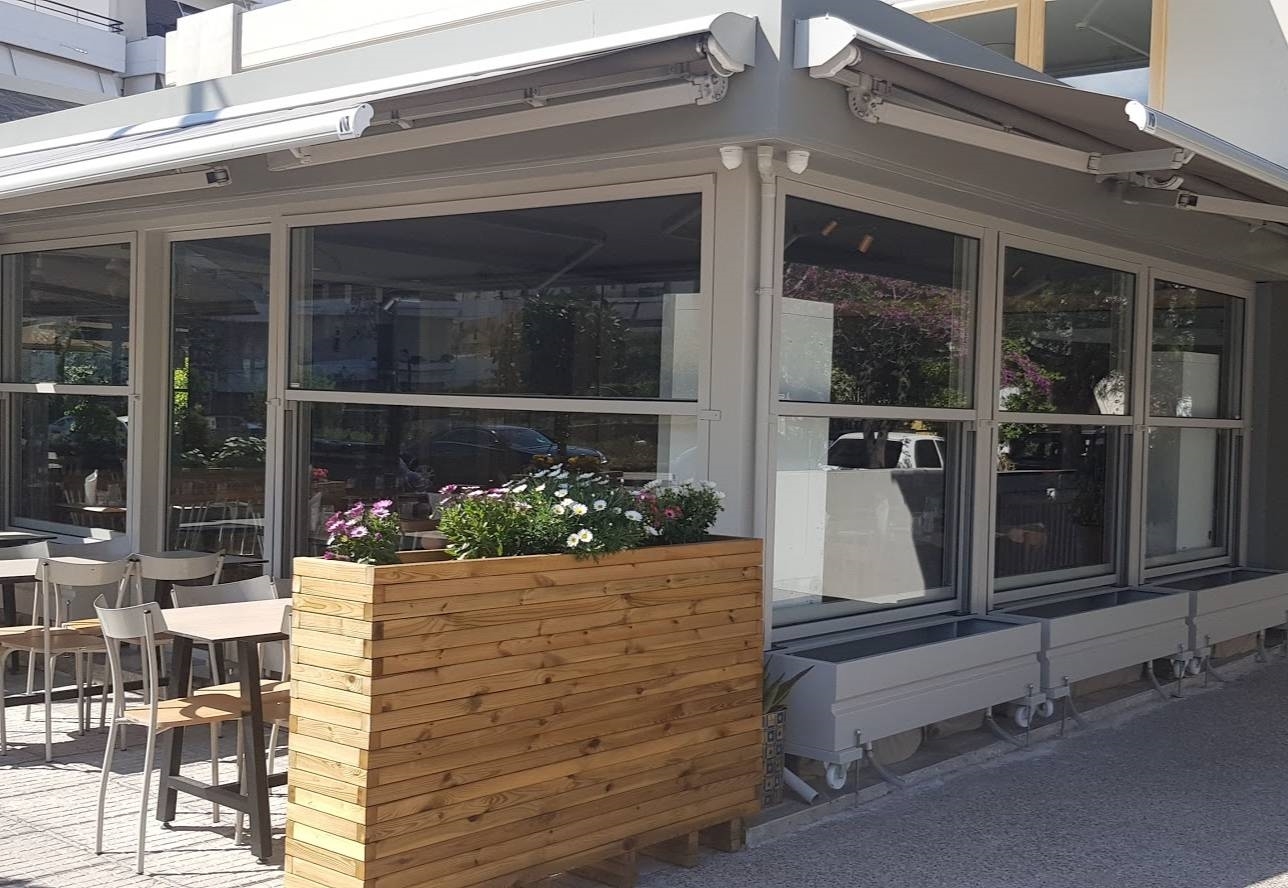

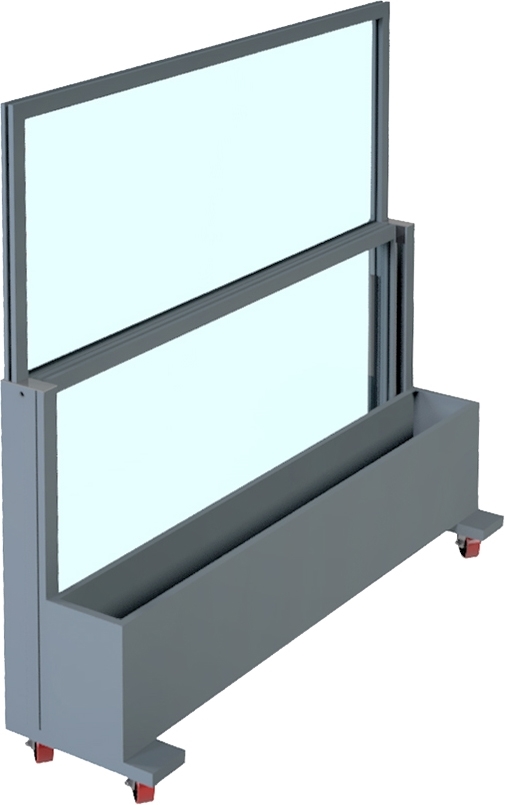

PLANTER WITH UP & DOWN SYSTEM

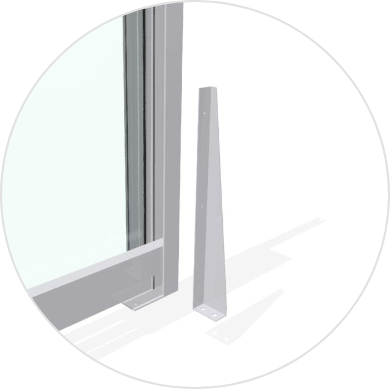

SUPPORT STRUT

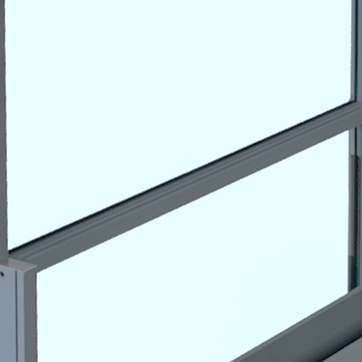

TRANSPARENT PLEXIGLASS WINDBRAKE (TO BE INSTALLED IN LINE)

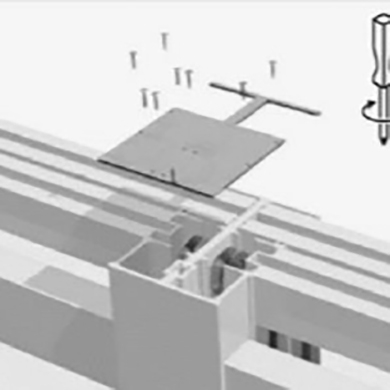

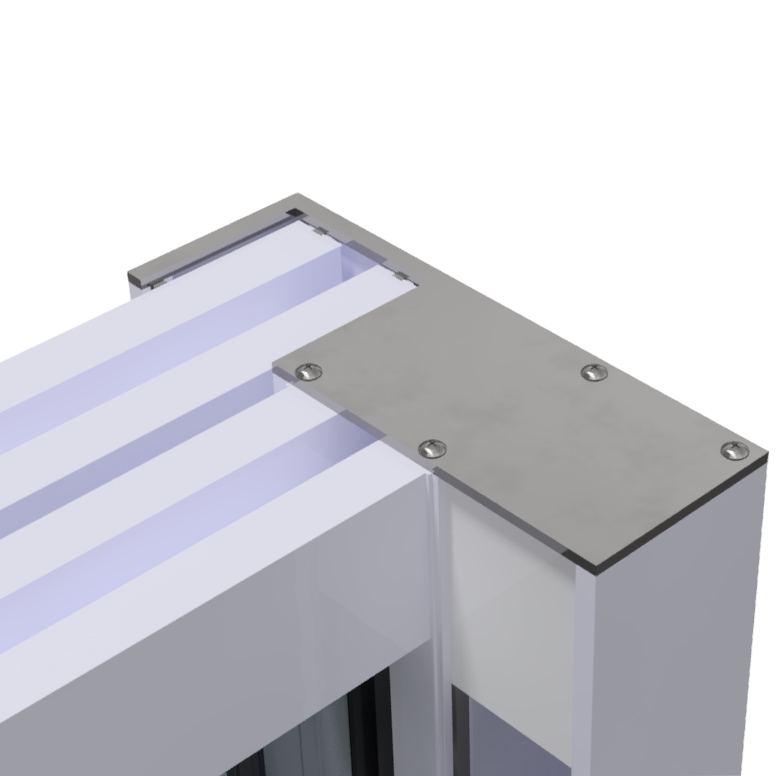

BOLTED CAP, TOP SECTION

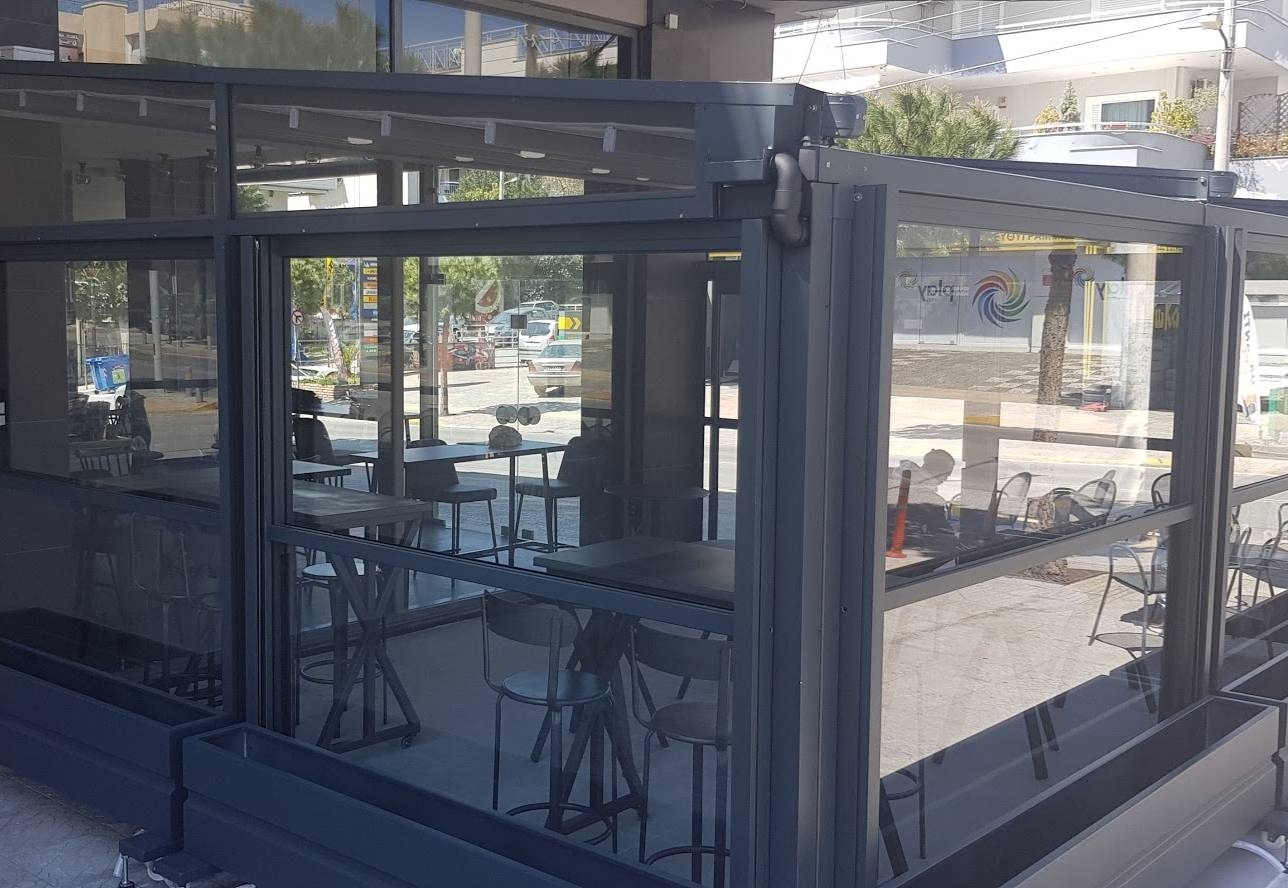

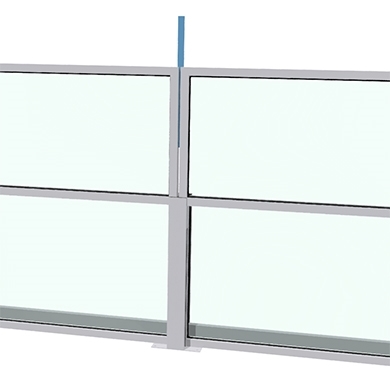

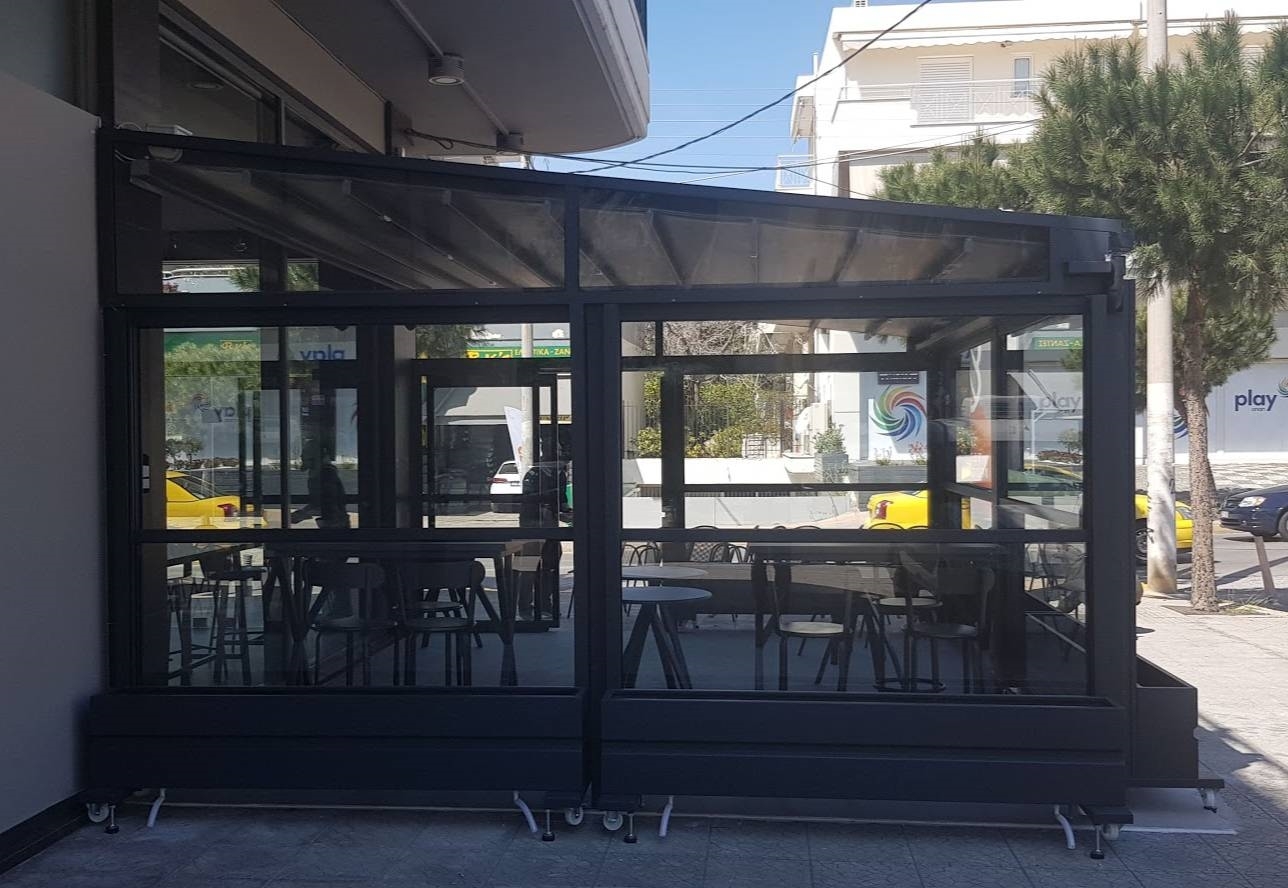

CAN BE INSTALLED IN LINE

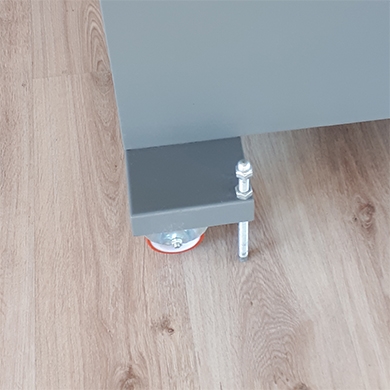

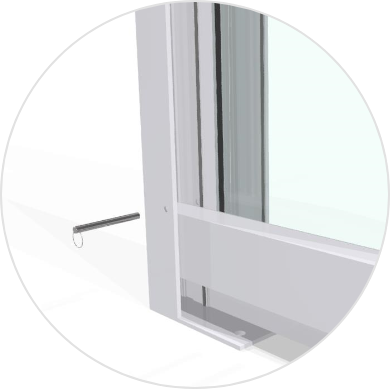

SAFETY PIN

GALVANIZED COUNTERWEIGHT STRIPS

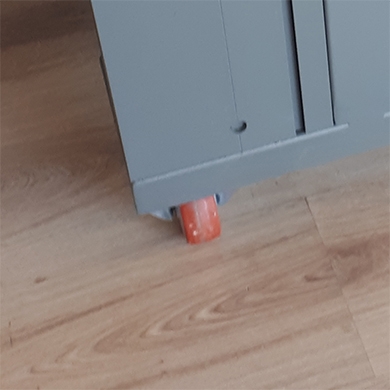

INDUSTRIAL TYPE WHEELS CAN BE USED

NON-PERMANENT INSTALLATION IS ALSO POSSIBLE
