MANUAL UP & DOWN PLUS

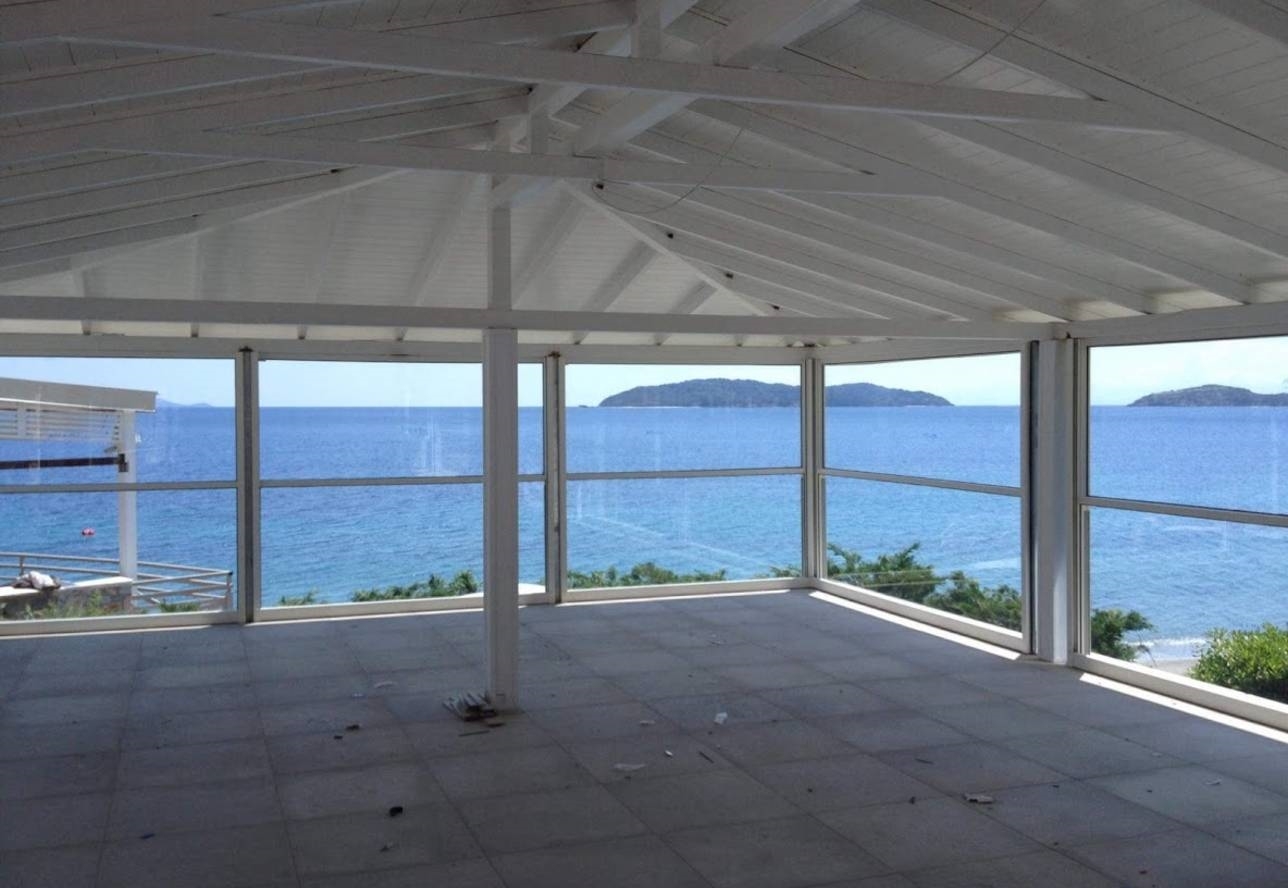

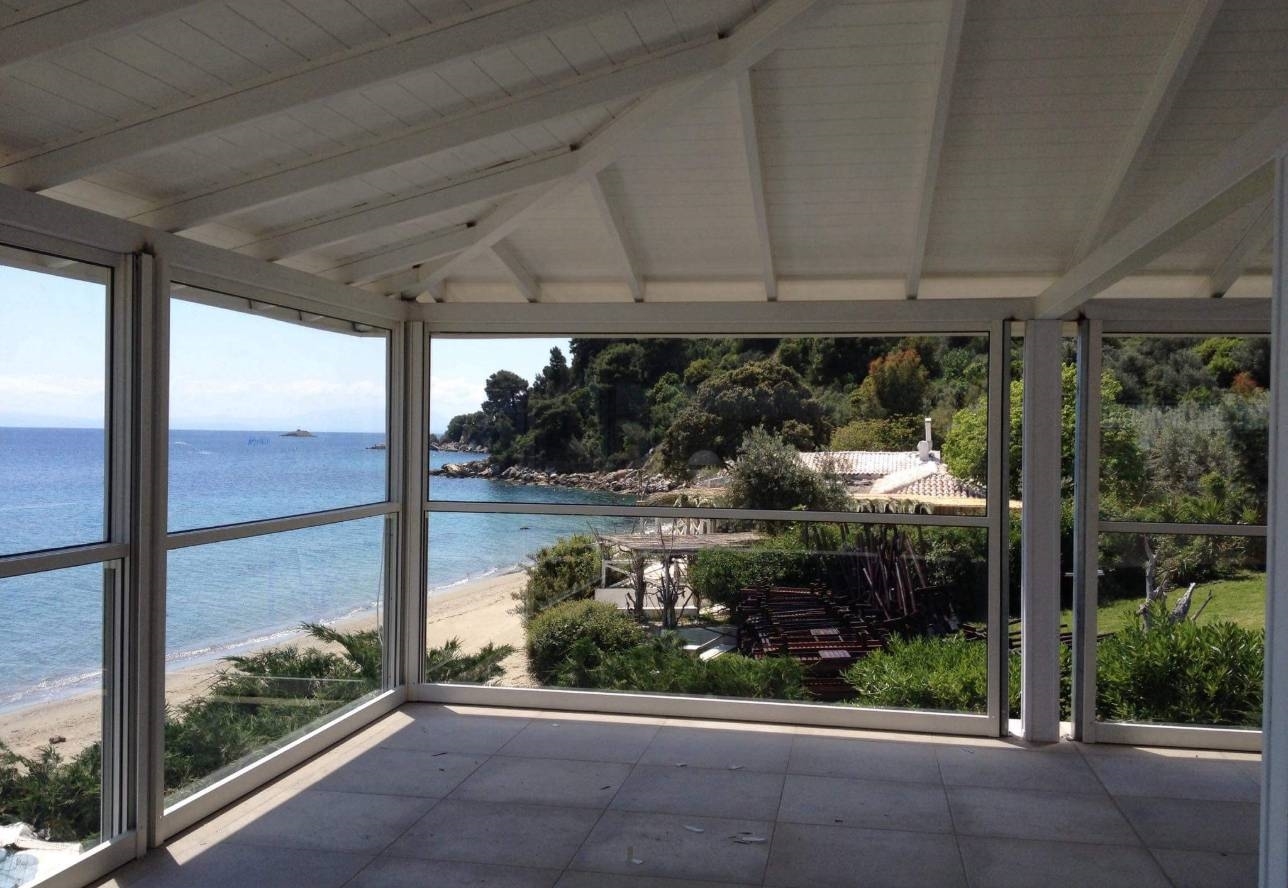

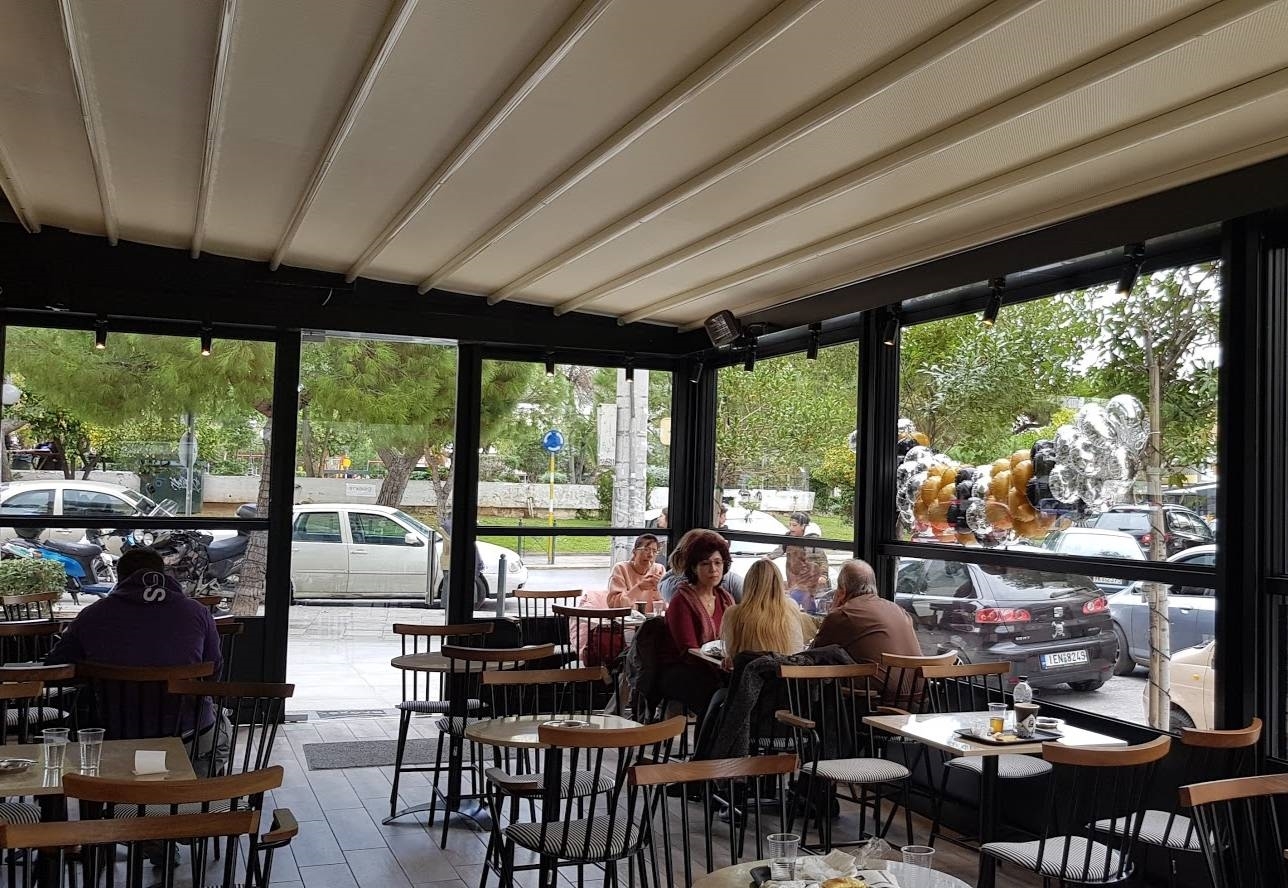

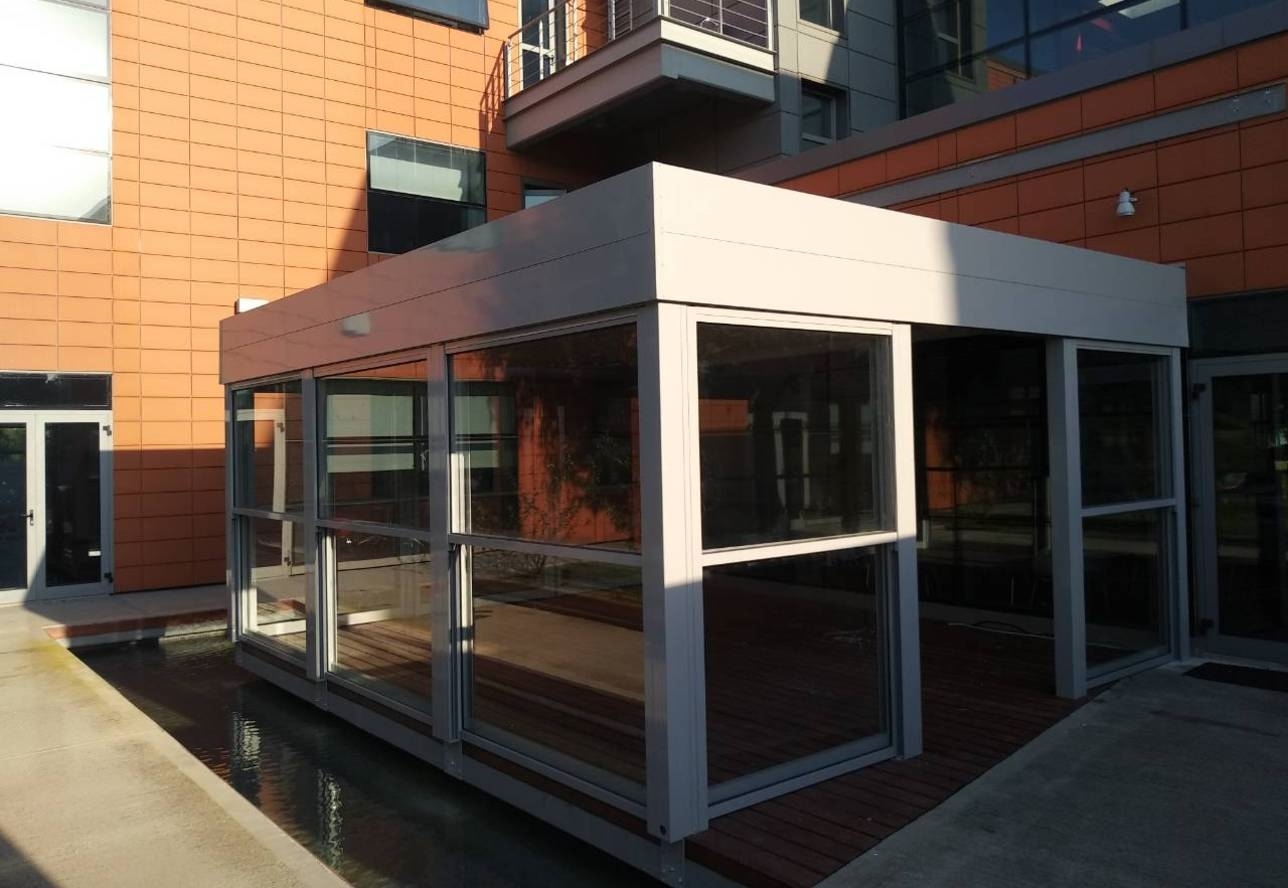

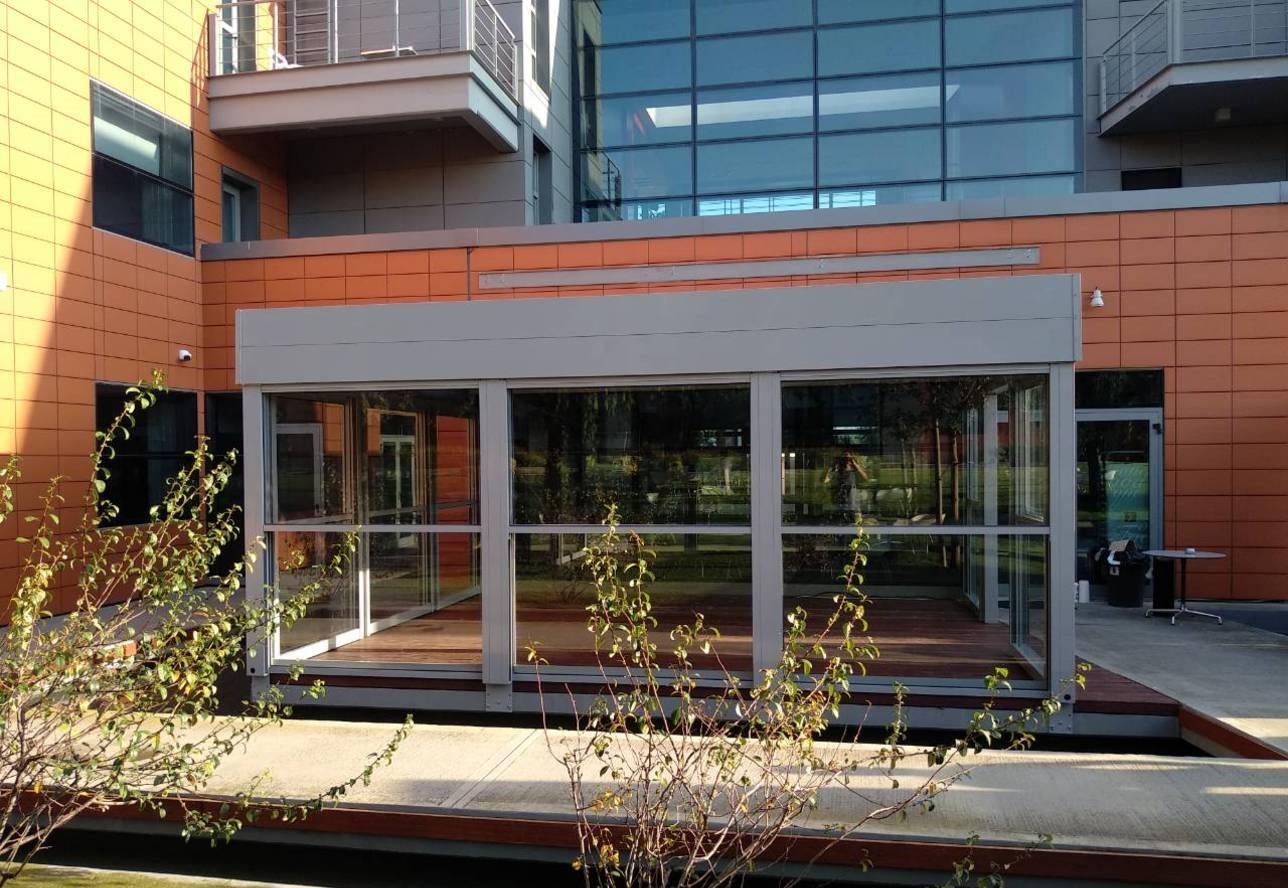

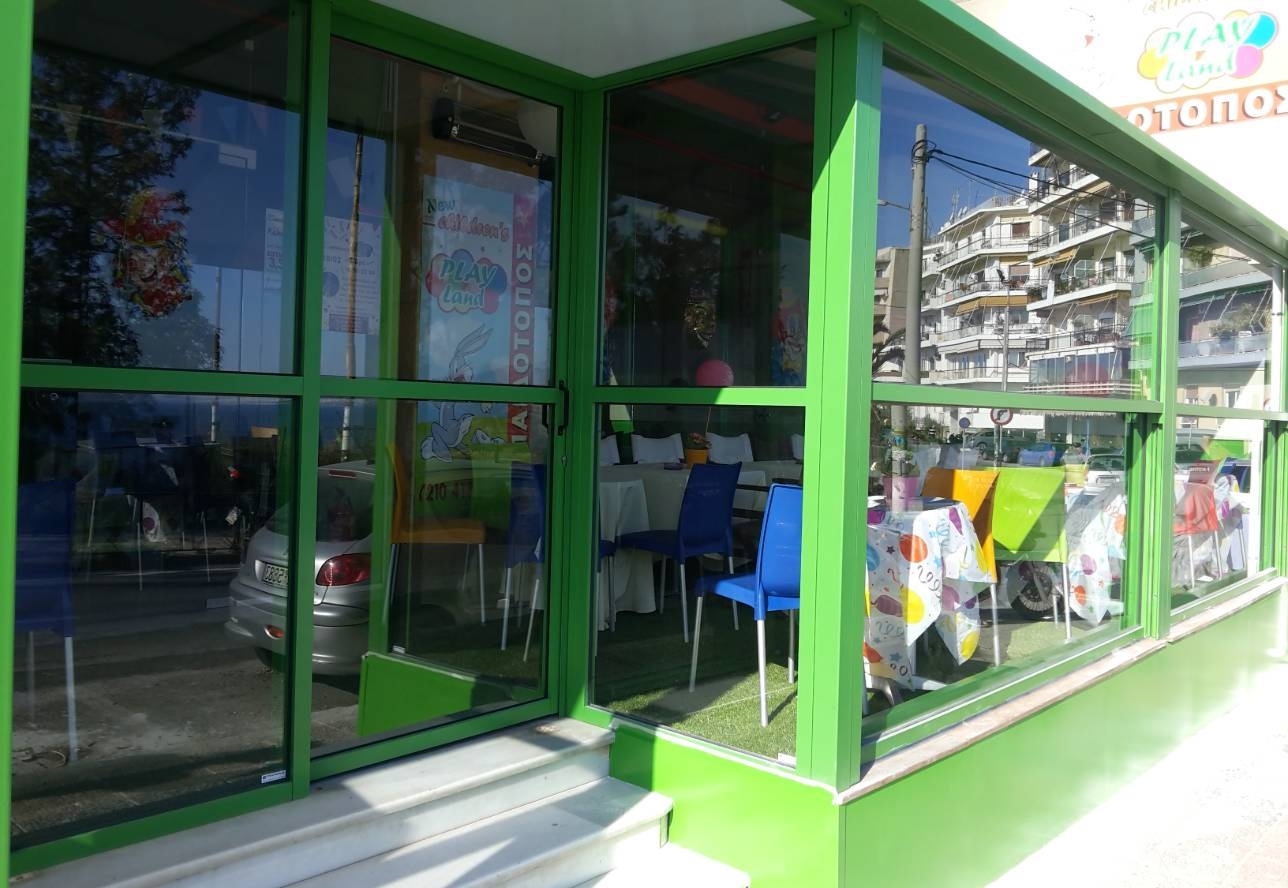

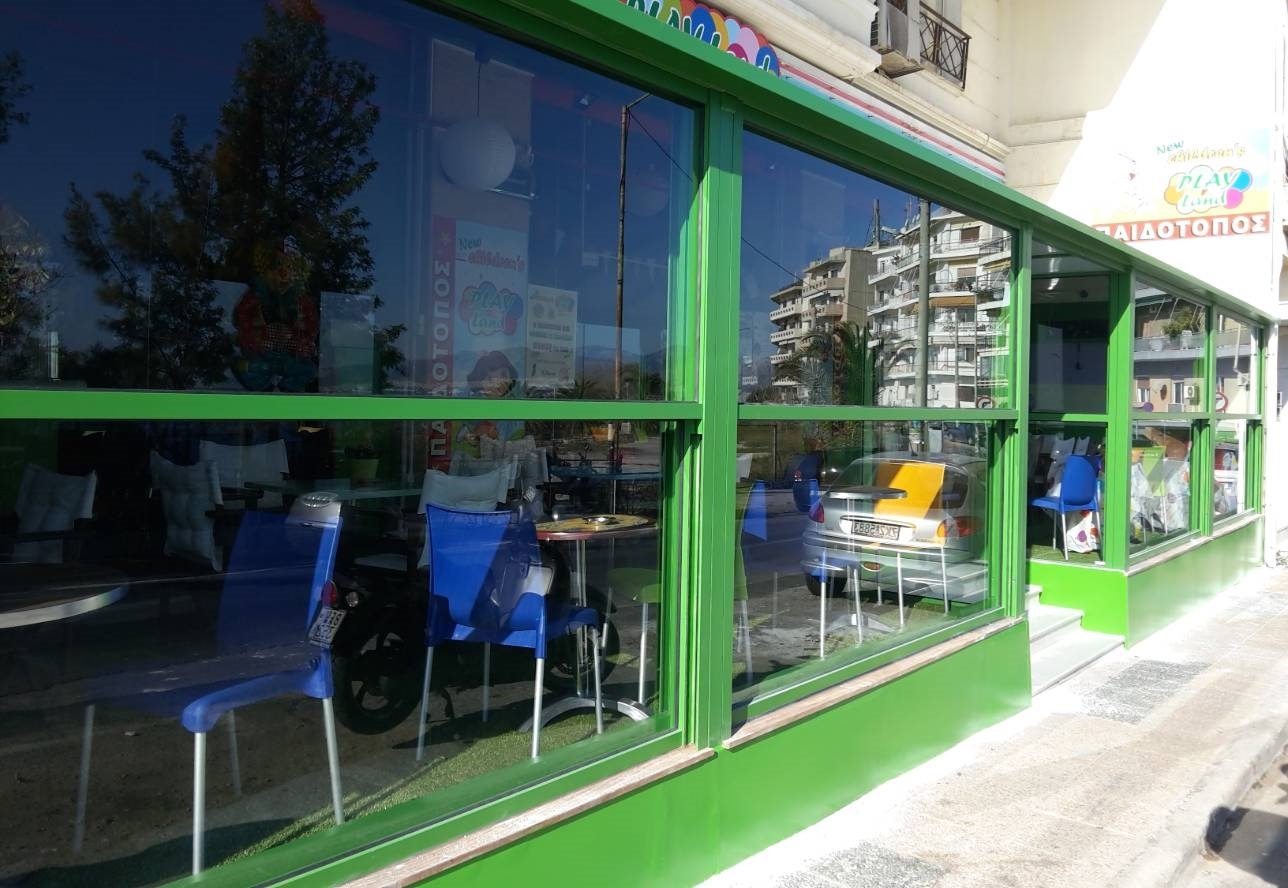

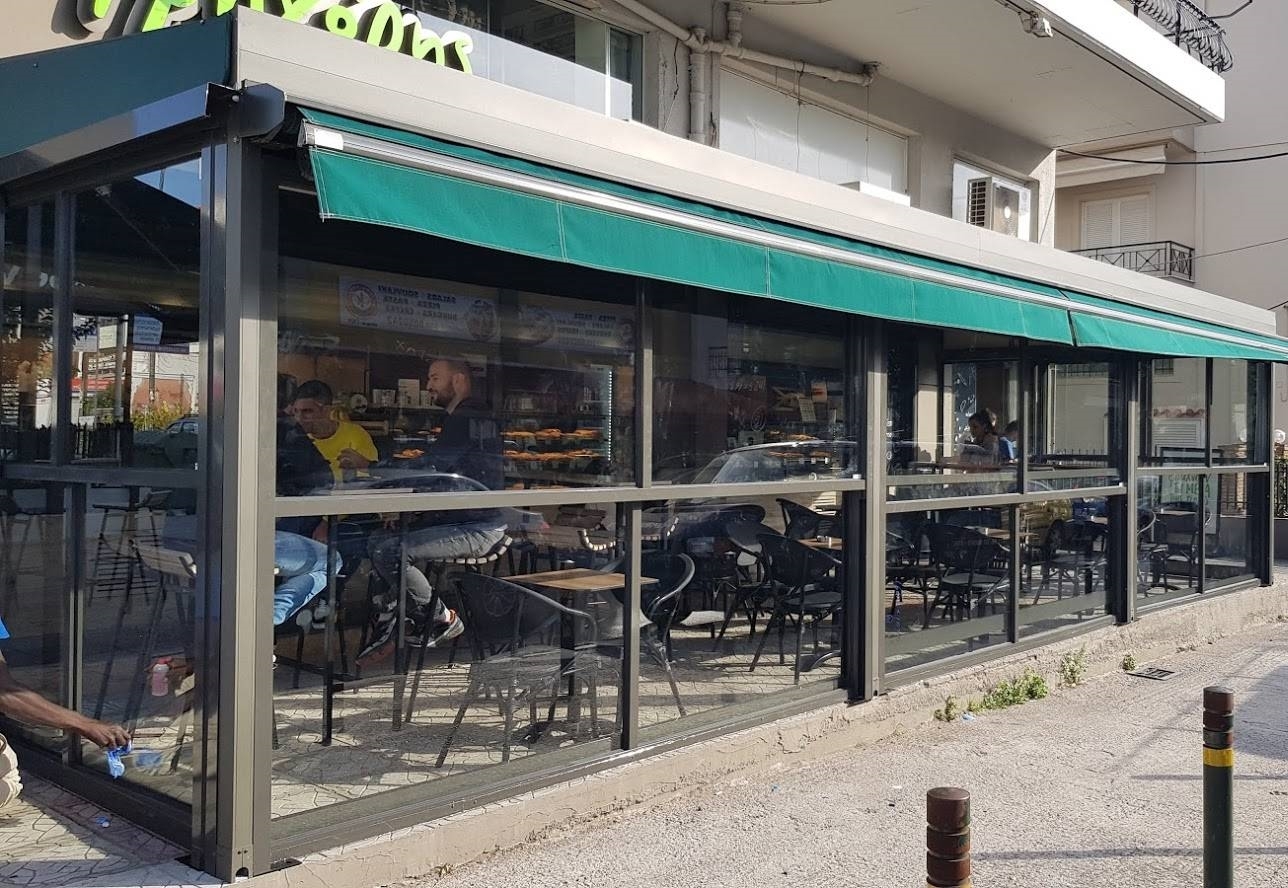

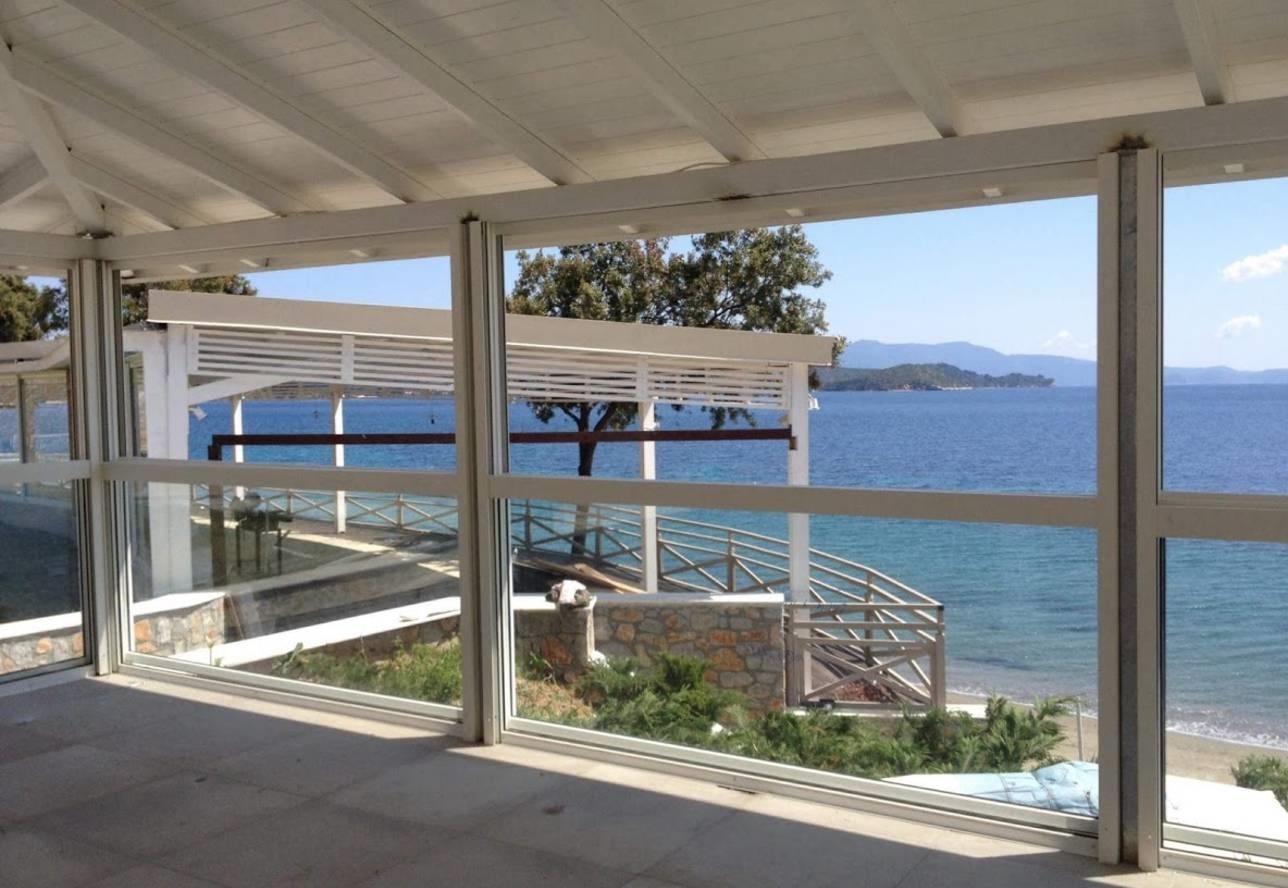

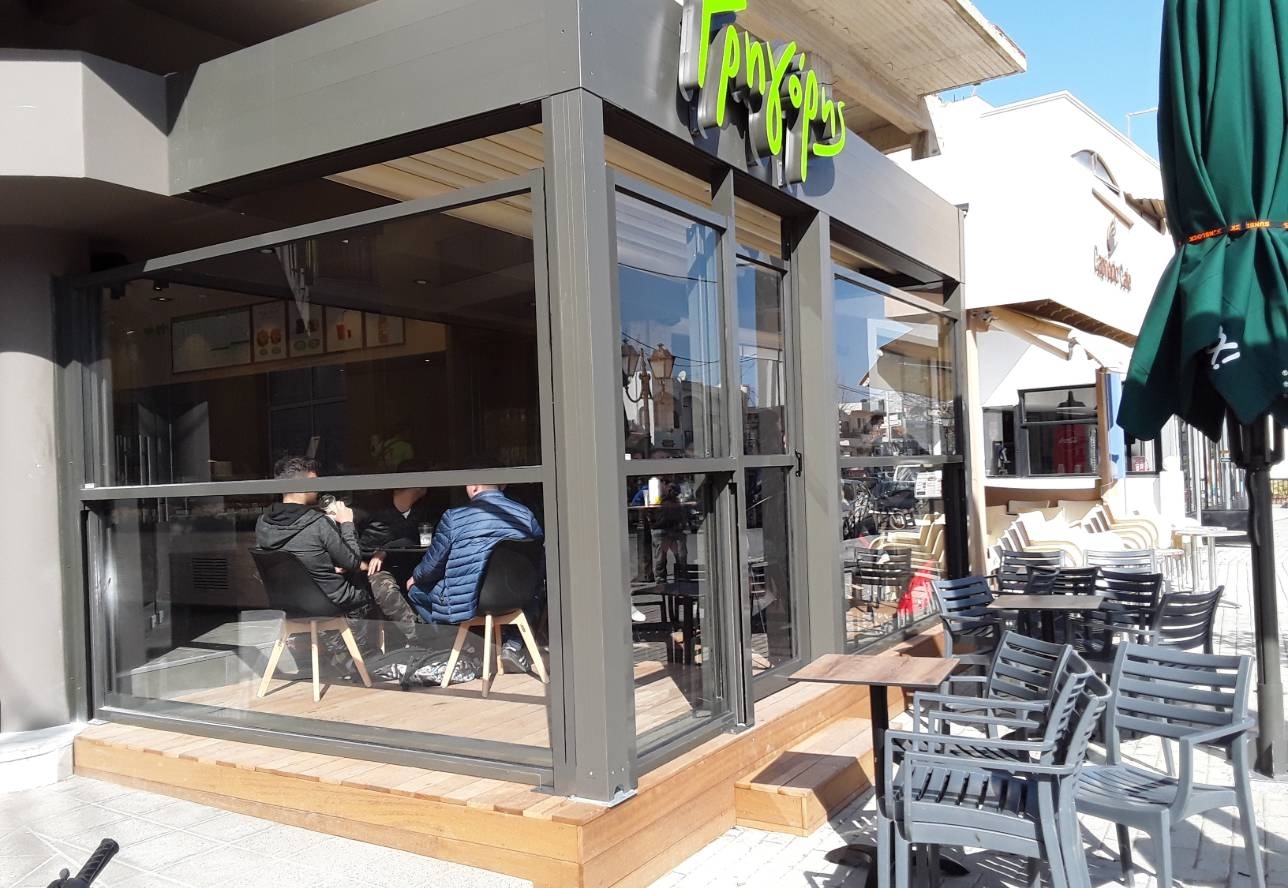

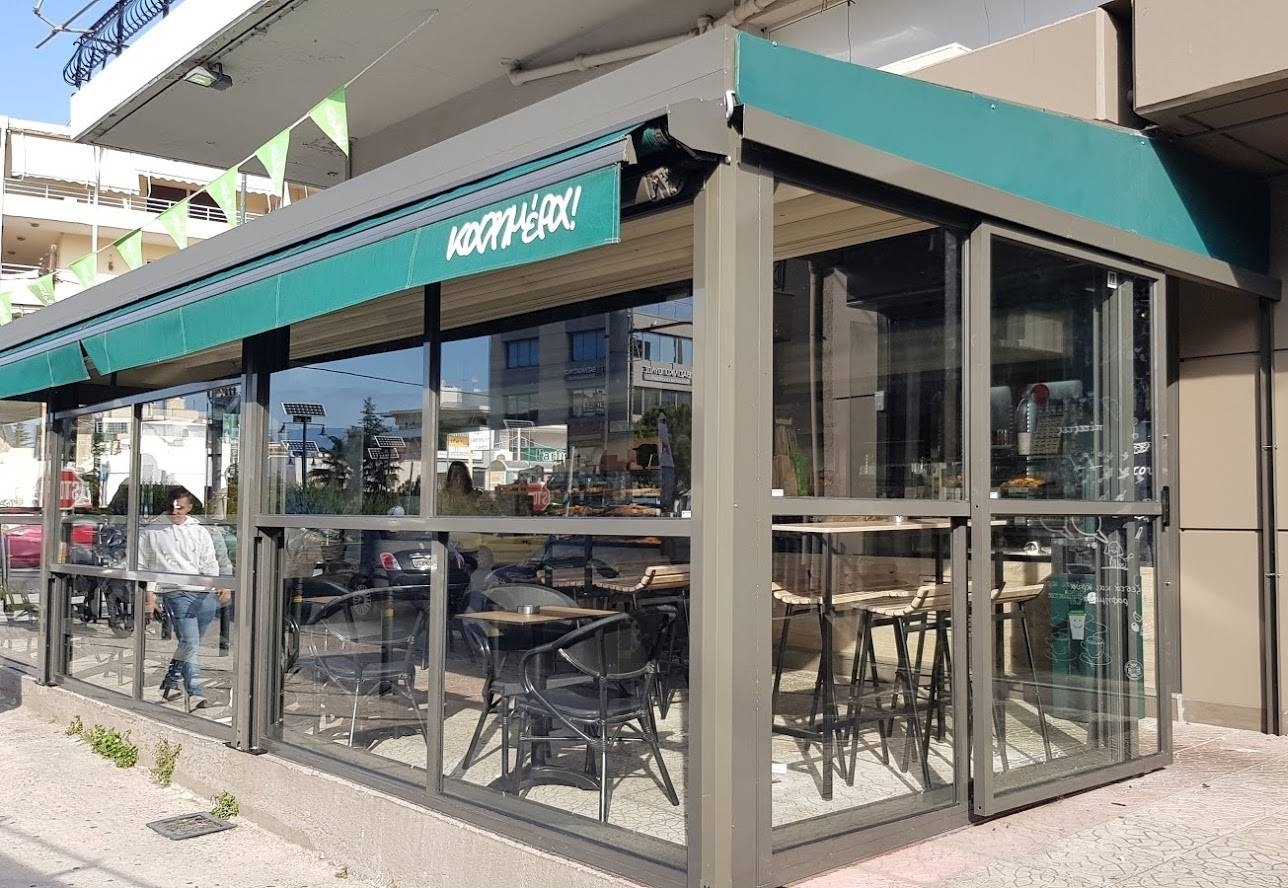

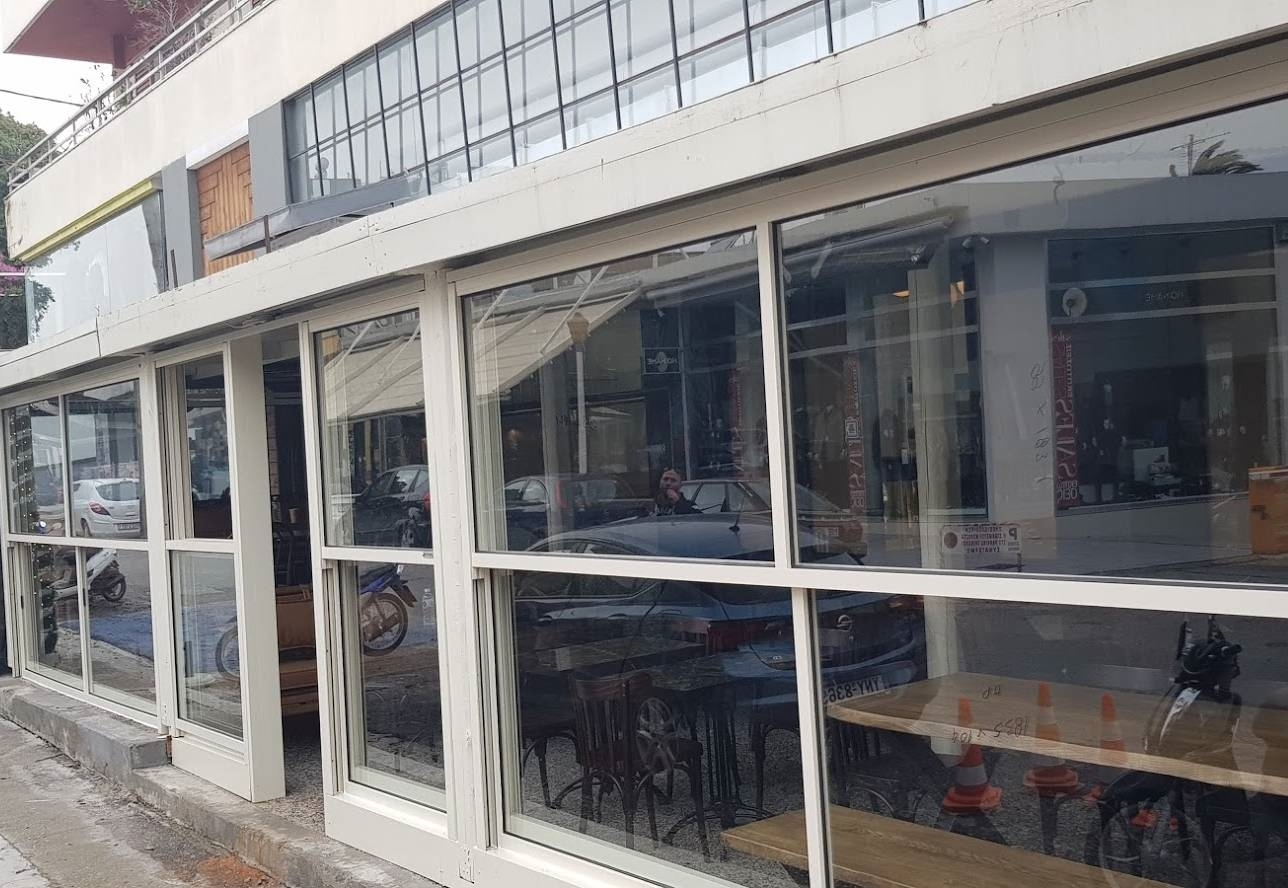

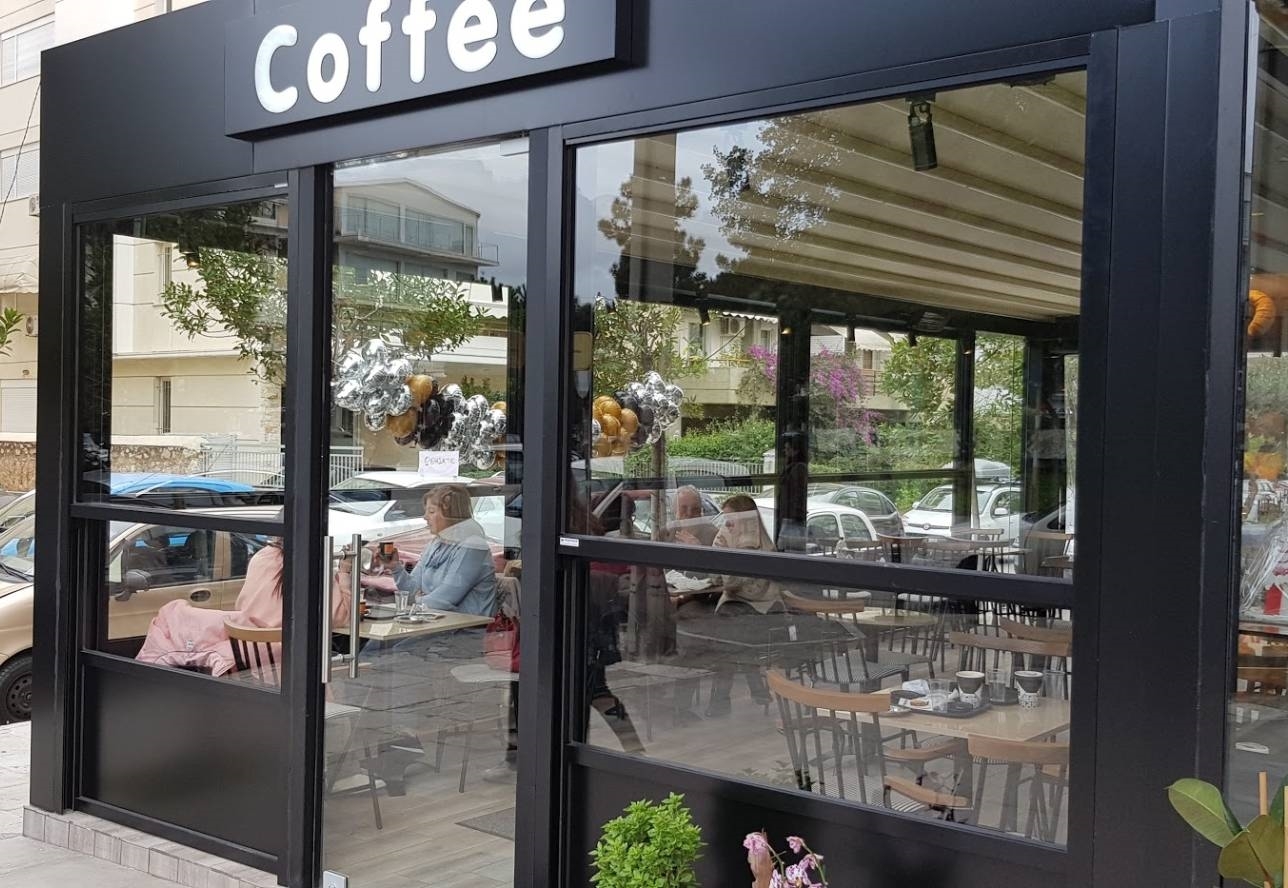

This is a complete side cover system. Suitable for perimeter coverage in professional dining areas as well as private spaces, protecting them against the weather while offering tasteful design and unobstructed view. To be installed placed between pillars, with full-size aluminum guides along the entire height, including full length weatherstrips to completely seal the gaps.

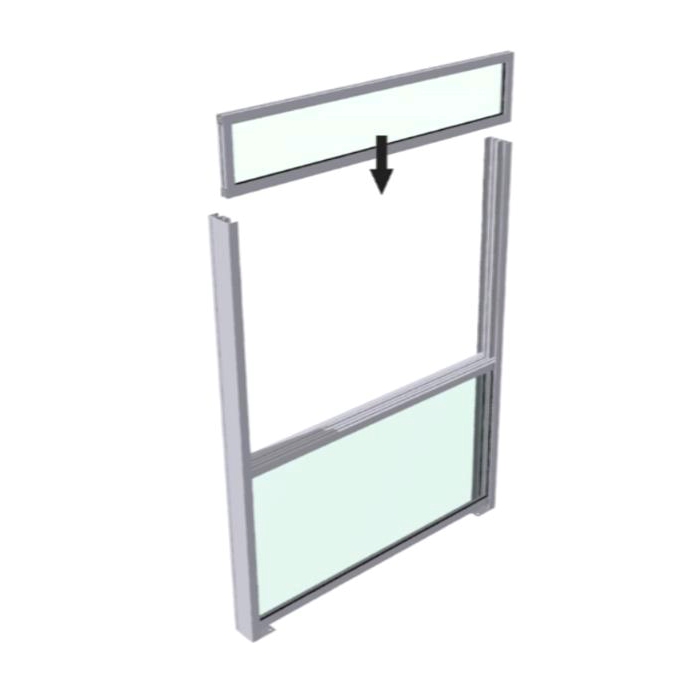

It is possible to install a skylight for high constructions.

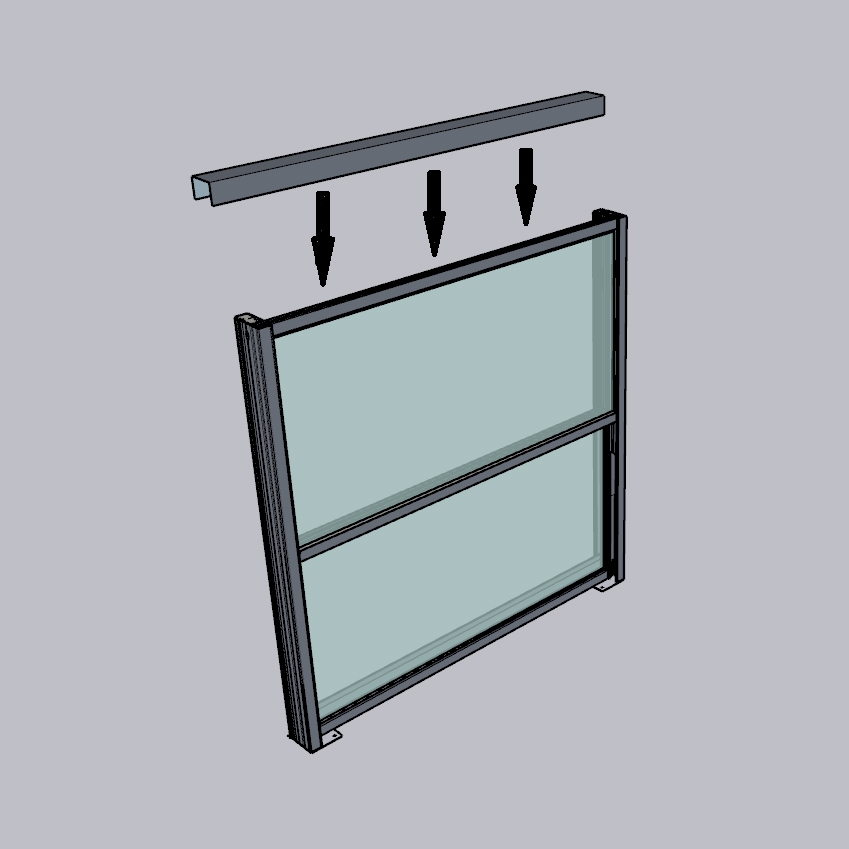

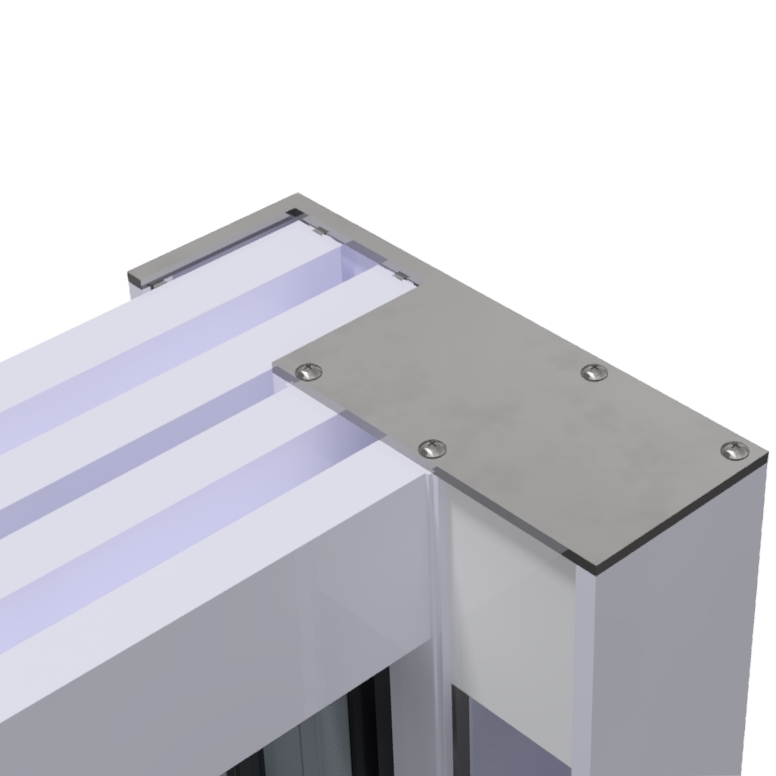

Joint cover (optional), to provide enhanced seal between the movable frame and the skylight.

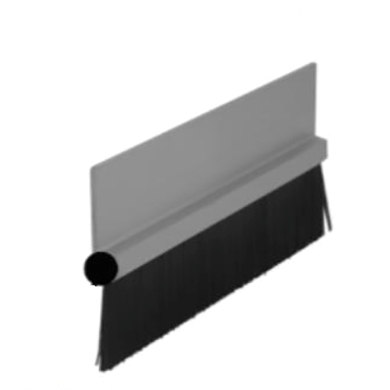

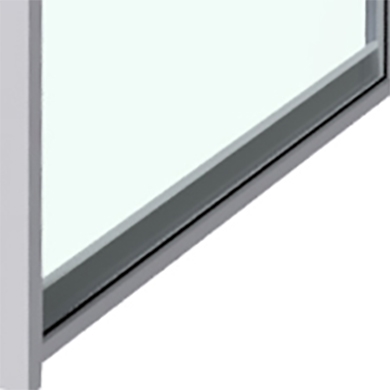

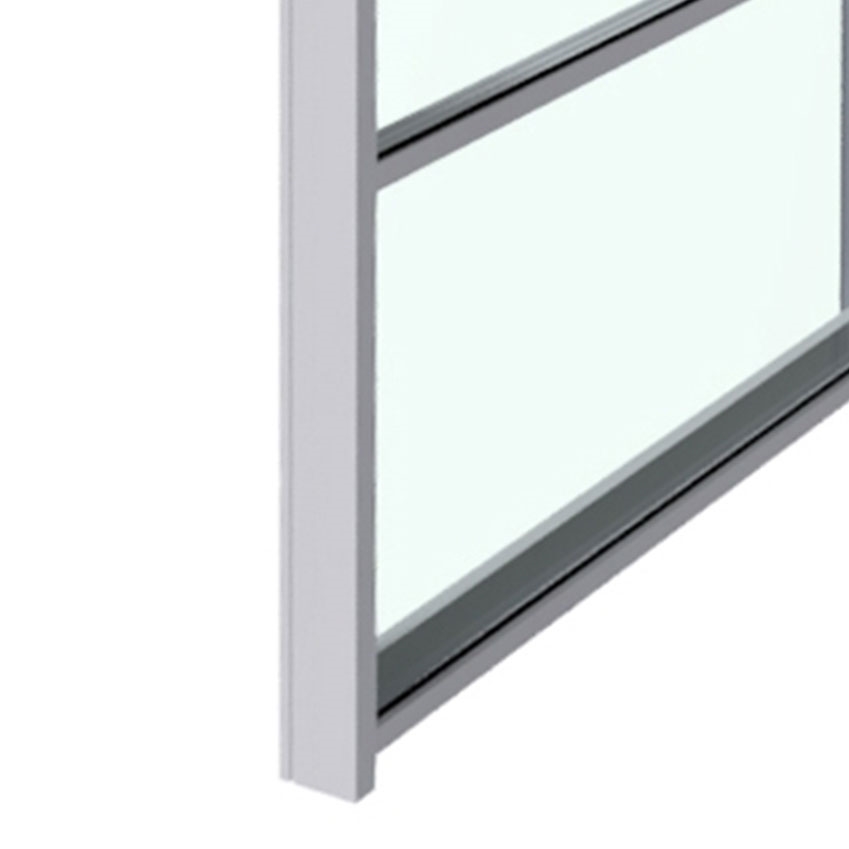

Optional weatherstrip between fixed and moving parts.

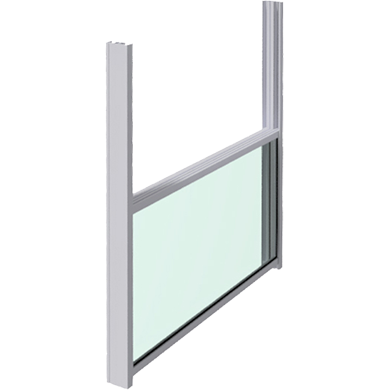

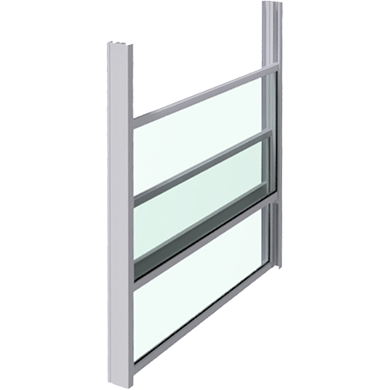

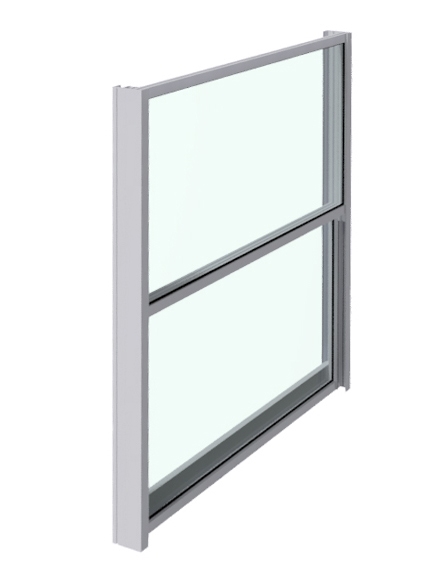

Hand driven entirely from powder coated aluminum. It consists of two 3mm + 3mm TRIPLEX glass panes. Available in any RAL color of your choice.

GLASS PANEL	3mm + 3mm Triplex
HEIGHT WHEN OPEN	200 cm	220 cm	240 cm
HEIGHT WHEN CLOSED	105 cm	115 cm	125 cm

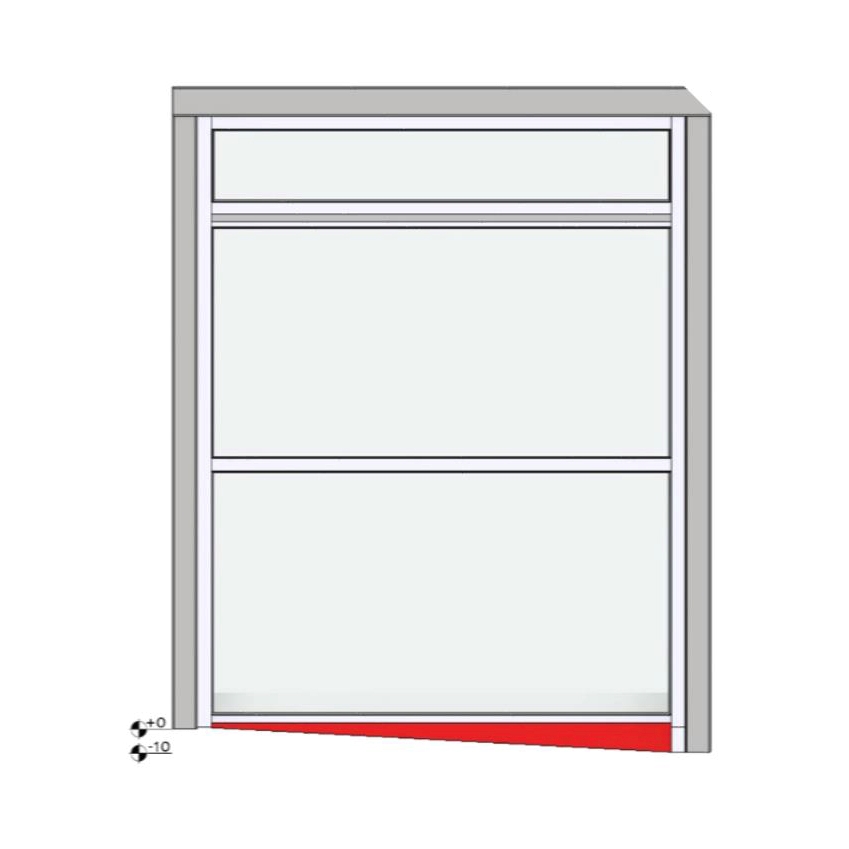

Available in lengths up to 3.50 m and heights up to 2.40 m. Can be made in any size required. Optional use of skylight at heights greater than 2.40 m. For structures wider than 3.50 - 4.00 m, we use a reinforced aluminum profile with an additional strut. Can be installed on sloping ground.
